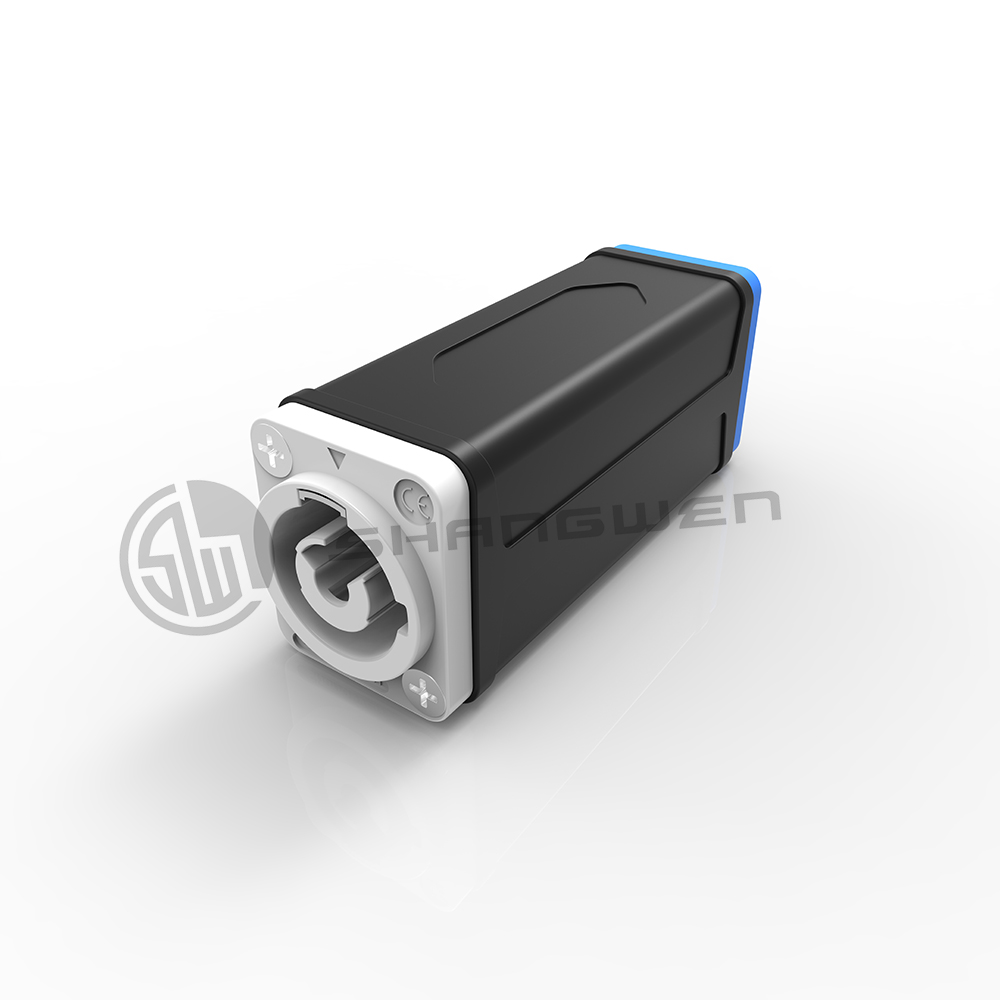

Indoor Use Power Coupler Adapter For Linking Power Cables Power In Out
SW3ZB / SW3ZW
PowerCON SW3FCA (power in) - powerCON SW3FCB (power out), this coupler for linking power cables with SW3FCA & SW3FCB.
The powerCON is a locking 3 conductor equipment AC connector with breaking capacity using contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Technical parameters
- Mechanical parameters
| Service life | ＞1000 times |
| Type of terminals | Soldering type terminals
|
- Electrical parameters
| Rated current | 16A |
| Rated voltage | 250V AC |
| Contact resistance | ≤3mΩ |
| Dielectric strength | 4000V DC |
| Insulation resistance | ＞1000GΩ |
- Material and environmental parameters
| Shell | Polyamide(PA 6.6 30%GR) |
| Conductor | Cu alloy |
| Conductor surface | Ag |
| Flame-retardant grade | UL94-V0 |
| Temperature range | -30°C~80°C |
| IP grade | IP20 |

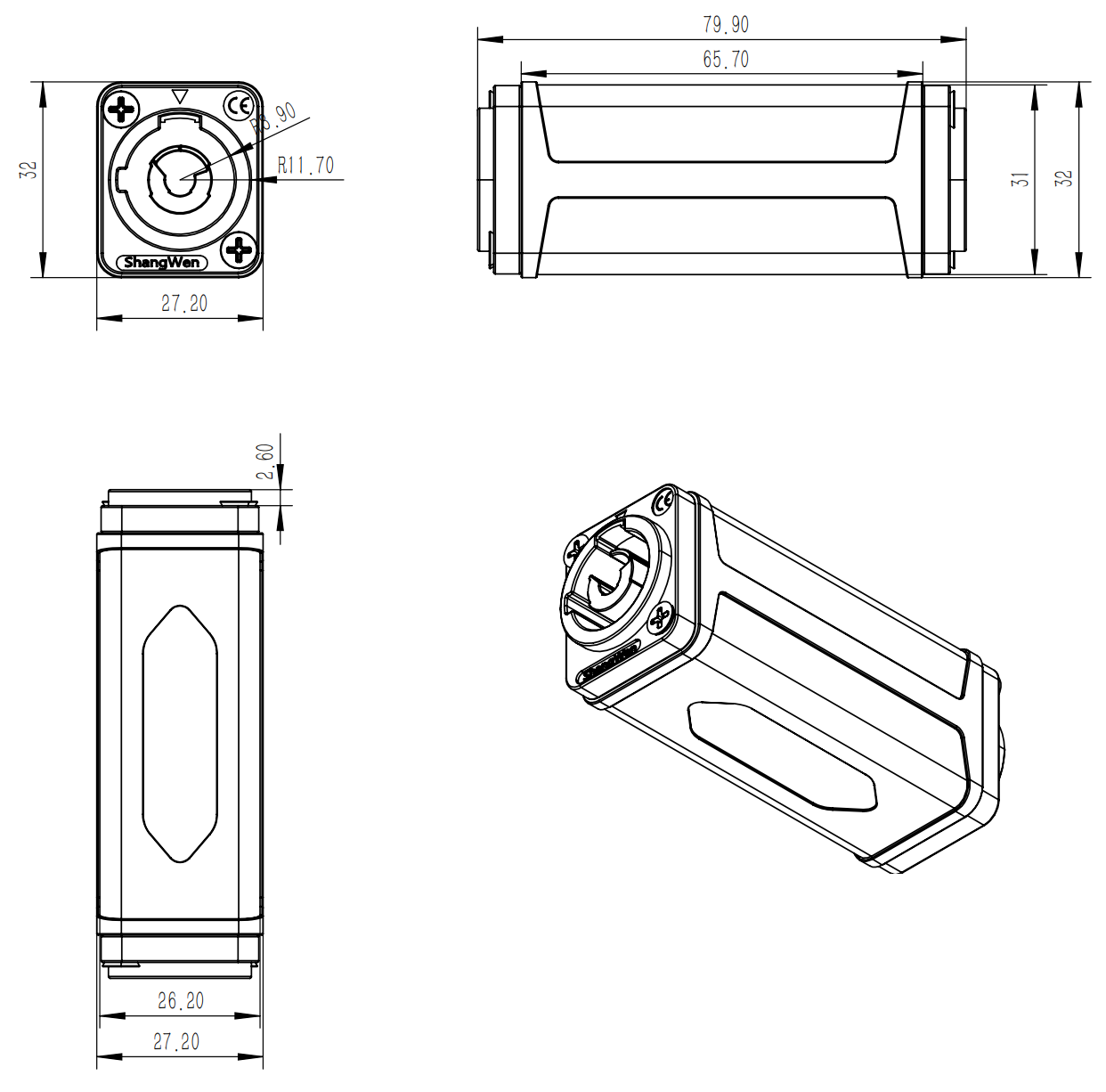

Product Profile
Packing
FAQ
1. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CQC.
2. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.
3. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.
4. What are the shipping ways you can offer?
A: Do your products come with warranty?
5. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.
